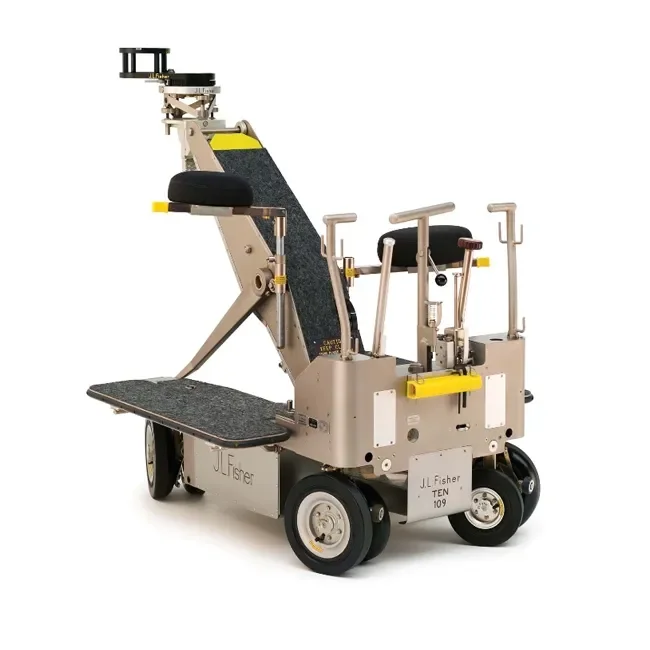

JLF Fisher 10 Camera Dolly

Price per day including everything below, discounts apply on multiple days.

• Three easily shifted steering modes (crab, conventional and round)

• Tight turning radius

• Mechanically compensated steering for accuracy

• Self-contained track system for use on Square Track

• Self-dampening hydraulic system

• Self-bleeding hydraulic system

• Charging system accepts 90-240v AC or DC to quickly charge the hydraulic system

• Self-centering hydraulic control knob or up/down lever with safety lock

• Manual hydraulic hand pump for use when electrical power is unavailable

• Lift beam position (cue) indicator

• Folding controls for transportation and storage

• Comfortable sliding seats with adjustable height

• Pneumatic Wheels

• Single-lever actuated four-wheel positive locking brake system

• Multi-Position Level Head with Mitchell mount and four leveling thumb screws

• Camera battery compartment

• Cable clips on lift beam for camera and battery cables

• Eight seat mount locations

• Removable Push Posts, also used as rear carry handles and manual pump handle

• Utility hooks on Push Posts

• Carpeted standing areas

• 500-pound (226.80 kg) lift capacity

• Seven lifts per system charge

• Max. lift beam elevation with Standard Level Head (SLT): 62.625 inches(159.068 cm)

• Min. lift beam elevation with Standard Level Head (SLT): 13.75 inches (34.925 cm)

• Min. lift beam elevation with Low Level Head (LHT): 3.125 inches (7.938 cm)

• Vertical beam travel: 46.875 inches (119.063 cm)

• Lift capacity: 500 pounds (226.8 kg)

• Length: 55.5 inches (140.97 cm)

• Width: 26.5 inches (67.31 cm)

• Height (operating): 38.625 inches (98.108 cm)

• Height (folded): 25 inches (63.5 cm)

• Minimum turn radius (round steering): 22 inches (55.88 cm)

• Minimum turn radius (conventional steering): 44 inches (111.76 cm)

• Carrying weight: 420 pounds (190.51 kg)

• Maximum Dolly load capacity: 1200 pounds (544 kg)

• Lifts per system charge: 7
